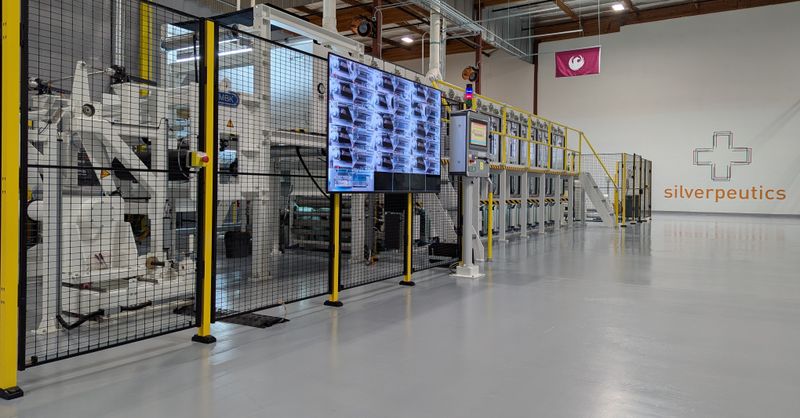

Electrostatic Self Assembly

Waterborne process, no volatile organics are generated
Up to one meter wide, roll-to-roll processing
Flexible substrates 1-10 mil thick, up to 10,000 ft long depending on substrate gauge
Up to 32 positive-negative alternations
Ideal for applying coatings less than two microns thick, where uniformity is critical
Fully automated to run without human interaction from remote control stations
Online, real time tracking of more than 60 process parameters

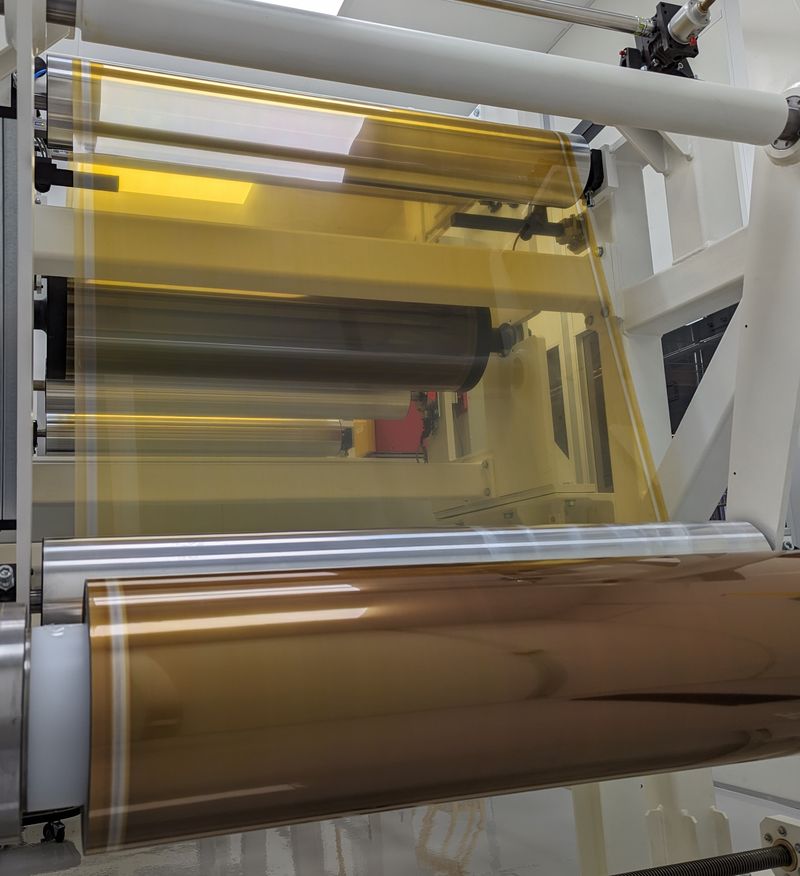

Up to one meter wide, roll-to-roll processing
Flexible substrates 1-10 mil thick
Ideal for applying wet films 25-400 micron thick
100 – 10,000 ft long
Applied and dried inside a fully enclosed controlled environment continuously supplied by HEPA filtered air
Online non-destructive monitoring of film thickness via Beta gauge
Optional online colorimetry
Fully automated to run without human interaction from remote control stations
Semi-batch solution preparation. 200 liter capacity, food grade, heat jacketed.
